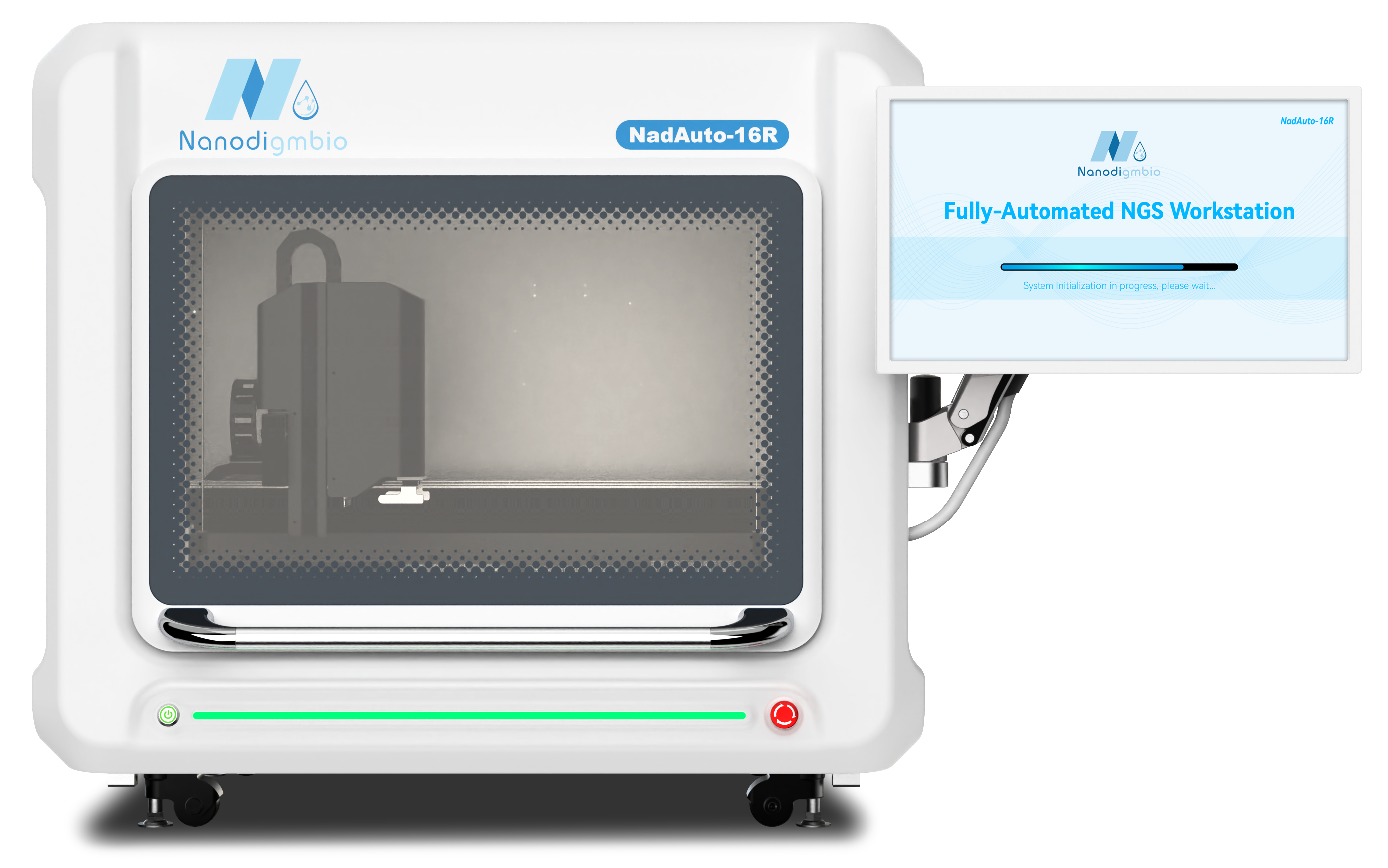

NadAuto-16R Fully-automated NGS Workstation

Catalog Number:

#1007204

NadAuto-16R consists of a host, integrated terminal, and control software. The host comprises a 3D robotic arm, a liquid handling module, 2 temperature control modules, a thermal cycler, a heating and oscillating module, and a host frame. The host has 12 standard SBS built-in plate positions, allowing for the flexible combination of functional modules, carrier, and consumables to meet the needs of various scenarios and sample amounts. Meanwhile, it is accompanied by a liquid handling module with 8-channel pipetting tips and a plate gripper, supporting the loading of 1/8 pipette tips, enabling flexible configuration based on the samples amounts, thus enhancing efficiency and facilitating plate transfer effortlessly.
NadAuto-16R is not only applicable to automated sample processing and loading, including sample dispensing, nucleic acid extraction, enzyme reaction system preparation, nucleic acid purification, quantitative loading, and sample mixing, but also for automated preparation of gene sequencing libraries and hybridization capture in clinical diagnostics, which can comprehensively enhance laboratory efficiency.

Request Quote

Product details
Ordering Information
Resources

Feature

01 Compact and Portable

Occupies less than 1 m³ of desktop space, effortlessly fits in limited spaces.
Integrated design of terminal all-in-one and mainframe, saving installation and operational space.

02 Flexible Integration

Seamless integration of temperature control module, heating and oscillating module, and thermal cycler on the dynamic deck, supporting the flexible configuration of high-throughput workstation to true walk-away automation.
Multi-functional integrated modules create a professional-level NGS automated workstation with minimal user errors.
Flexible combination of 8-channel pipetting tips for precision pipetting, meeting diverse liquid-handling requirements, and improving pipetting efficiency.

03 User-friendly Simplicity

3D Mobile Robot with 8-channel pipetting tips and plate gripper, equipped with preset multiple transfer tracks, effortlessly handling liquid transfers and plate movements.
High-definition large LCD screen, flexible touch control with quick response, one-touch start/pause/resume processes to sustain workflow.
Graphical process editing, guided operation, drag-and-drop script elements, zero-threshold visual programming for a more user-friendly human-machine interaction.
Preset for routine applications such as NGS library preparation and hybridization capture, ready to use upon purchase. Meanwhile also supporting personalized customization and independent script development.

04 Secure and Reliable

Standard equipped with HEPA and UV lamp, ensuring continuous cleanliness of the operating environment.
Based on a liquid-free air displacement pipetting principle, effectively removing aerosol contamination.
Bright, highly colored status light bar indicates the host's operating status in real time, thus avoiding hardware failures and software errors that can cause long downtime.
Multi-level permission management ensures data security by assigning different operation permission levels to various users.
Emergency pause button is available for one-touch emergency stop, ensuring human-machine safety.

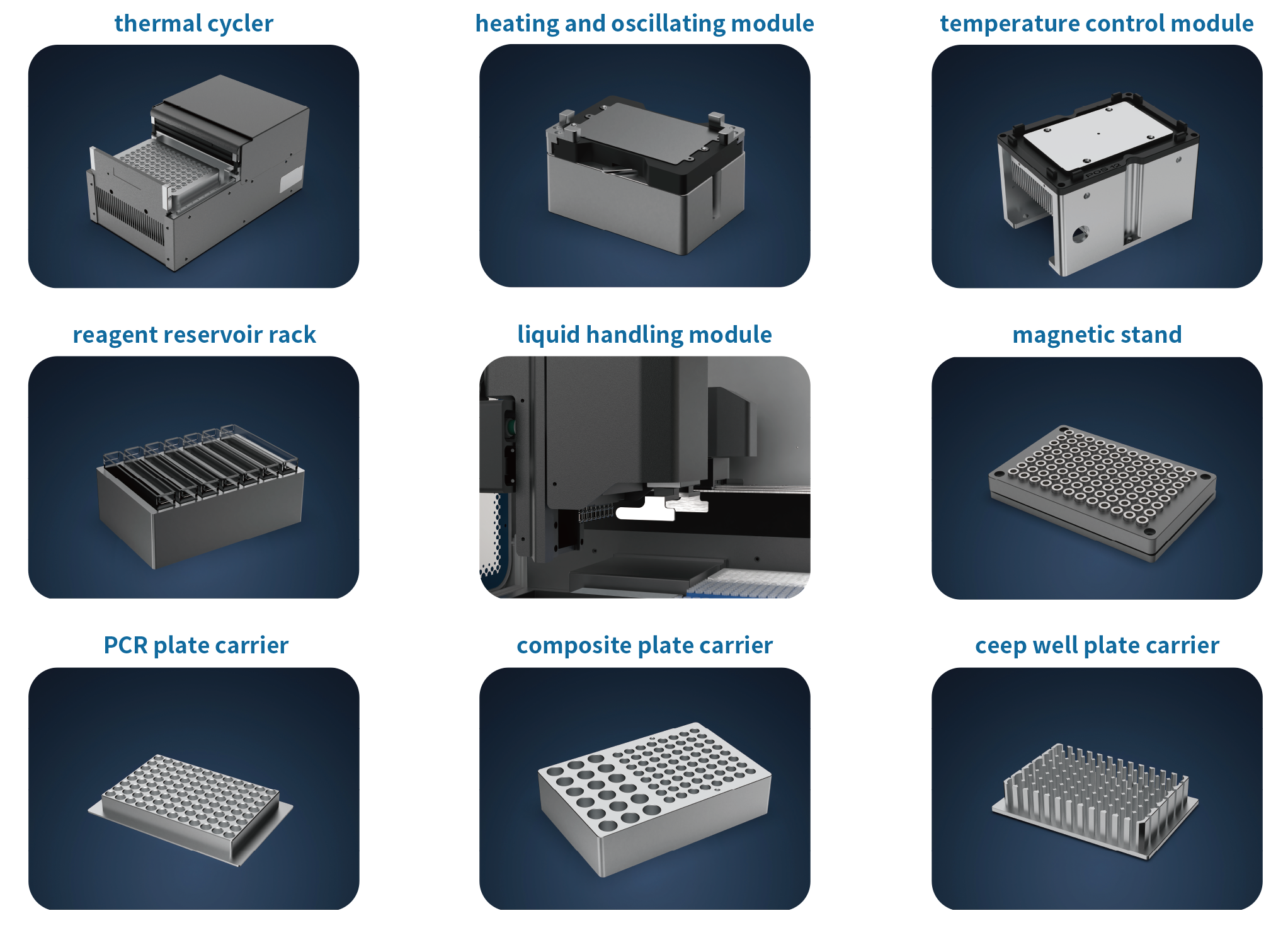

Functional Components

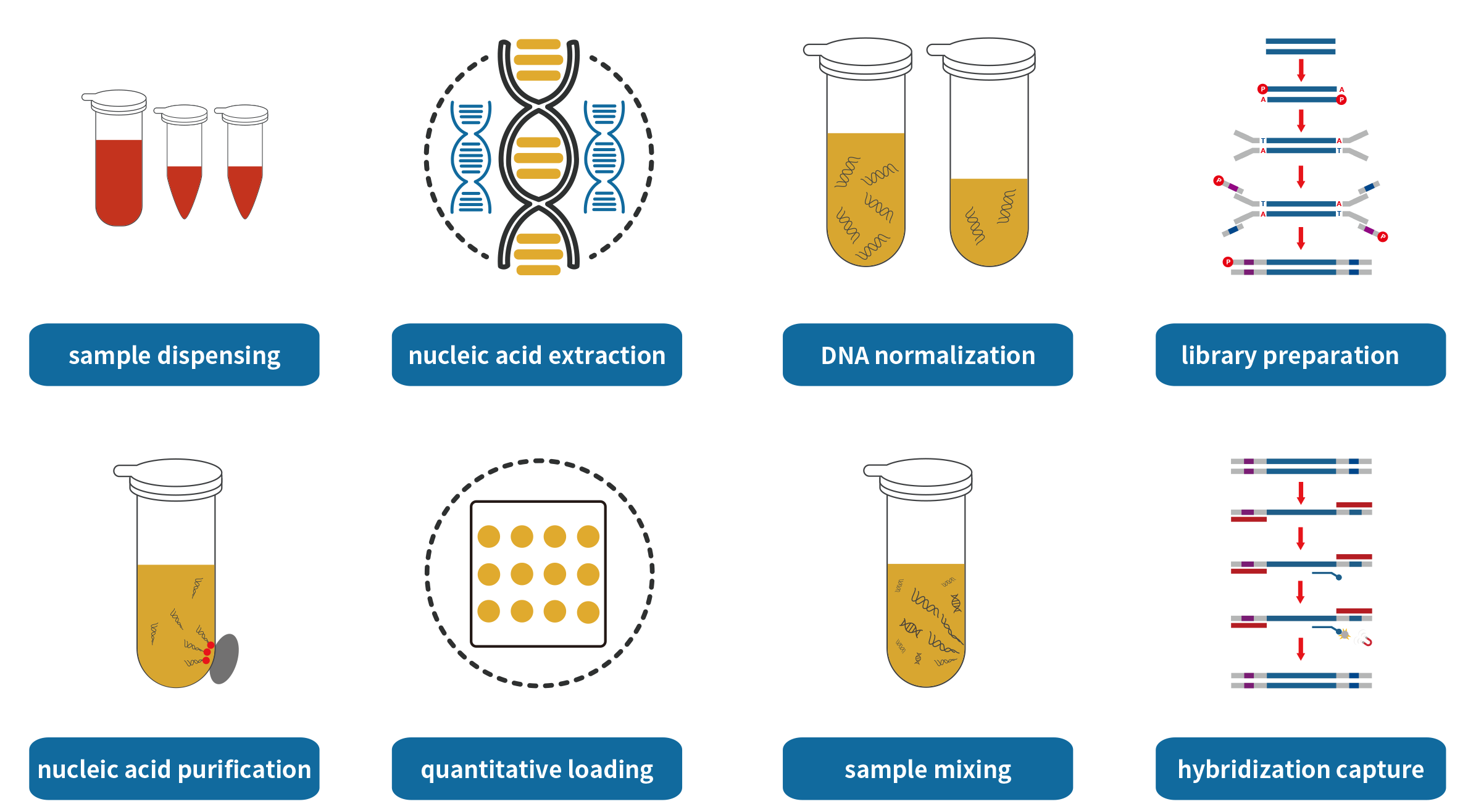

Application

Specification

Host Parameters	Size	970 mm (width) × 790 mm (depth) × 890 mm (height)	Weight	150 Kg
Host Parameters	Maximum Output Power	1700 VA	Protection class	IPX0
Power requirements	Voltage	AC 100-240 V	Frequency	50/60 Hz
Operating environment	Temperature range	10℃~30℃	Relative humidity	20%~80%，non-condensing
Operating environment	Barometric pressure range	86 kPa～106 kPa
Robot arm	Repeated positioning	± 0.1 mm
Pipetting channel	Channel type	Single/8-channel	Pipetting range	2 μL~200 μL
Pipetting channel	Pipetting Precision	2 μL: ≤ 5%; 200 μL: ≤ 1%	Pipetting accuracy	2 μL: ≤±10%; 200 μL: ≤±1.5%
Temperature control module	Temperature range	4℃~75℃	Temperature uniformity	1.0℃
Temperature control module	Temperature accuracy	±1.0℃	Temperature fluctuation	±0.5℃
Thermal cycler	Temperature range	4 ~ 99℃	Heated lid temperature	30 ~ 110℃
	Temperature accuracy	±0.5℃	Temperature uniformity	1.0℃
	Temperature fluctuation	±0.2℃
Heating and oscillating module	Temperature range	Room temperature+5℃ ~ 99℃	Temperature uniformity	1.5℃
	Temperature accuracy	±2.0℃	Temperature fluctuation	±0.5℃
	Speed range	200 rpm~2,000 rpm
