μCaler RIA Solution for Respiratory Pathogen Identification and AMR Analysis

Pathogen Species List

Classiﬁcation		Pathogen
Virus（35 species）	DNA virus (12 species)	Human polyomavirus 1 (BK Polyomavirus), Human polyomavirus 2 (JC Polyomavirus), Human polyomavirus 4 (WU Polyomavirus), Human adenovirus B/C/D, Human Alphaherpesvirus 1/2/3, Human Gammaherpesvirus 4 (Epstein-Barr Virus), Human Betaher-pesvirus 5/6/7, Human Bocavirus 1/2/3/4, Human Parvovirus B19, Monkeypox Virus
	RNA virus (23 species)	Human Rhinovirus A/B/C, Human Respiratory Syncytial Virus A/B, Human Parainﬂuenza Virus 1/3, Human Parainﬂuenza Virus 2/4, Mumps Virus, Inﬂuenza A virus (coverage of encoding genes), Inﬂuenza B, Inﬂuenza C, Coxsackievirus A/B, Echovirus, Enterovirus A71/D68, Human Metapneumovirus, Measles Virus Genotype D8, Rubella Virus Genotype 2B, SARS-CoV, SARS-CoV-2 (coverage of whole genome), MERS, Human Coronavirus (OC43, HKU1), Human Coronavirus (229E, NL63)
Bacteria (> 146 species)		E. coli, S. aureus, S. epidermidis, S. haemolyticus, K. pneumoniae, A. baumannii, A. junii, P. aeruginosa, S. maltophilia, P. micra, S. pneumoniae, S. dysgalactiae, S. inter-madius, S. anginosus, S. constellatus, S. pyogenes, S. agalactiae (group B streptococcus or GBS), P. anaerobius, M. tuberculosis, M. bovis, M. africanum, M. canetti, M. leprae, M. avium, M. intracellulare, M. abscessus, M. chelonae, M. malmoense, M. xenopi, M. scrofulaceum, M. kansasii, M. fortuitum, M. marinum, M. haemophilum, M. szulgai, M. simiae, M. asiaticum, M. smegmatis, M. shottsii, M. genavense, M. gordonae, M. ulcerans, M. novum, M. neoaurum, M. botniense, M. chimaera, M. mantenii, M. heckeshornense, M. interjectum, M. intermedium, Candidatus M. methanotrophicum, M. alsense, M. angelicum, M. aquaticum, M. bouchedurhonense, M. bourgelatii, M. branderi, M. celatum, M. conspicuum, M. europaeum, M. fragae, M. kubicae, M. kyorinense, M. lacus, M. lehmannii, M. monteﬁorense, M. noviomagense, M. ostraviense, M. palustre, M. paraense, M. paragordonae, M. paraseoulense, M. paraterrae, M. parmense, M. persicum, M. seoulense, M. sherrisii, M. shigaense, M. shimoidei, M. shin-jukuense, M. simulans, M. spongiae, M. stomatepiae, M. talmoniae, M. tilburgii, M. timonense, M. vicinigordonae, M. yunnanensis, N. gonorrhoeae, N. meningitidis, B. anthracis, B. cereus, B. fragilis, C. freundii, A. haemolyticum,C. diphtheriae , C. pseudotuberculosis, F. necrophorum, H. inﬂuenzae, H. parainﬂuenzae, S. marcescens, M. catarrhalis, B. pertussis, B. parapertussis, B. bronchiseptica, B. holmesii, L. pneumophila, E. meningoseptica, E. anophelis, C. burnetii, B. abortus, B. anthropi, B. melitensis,B. canis, B. Suis, L. monocytogenes, Y. pestis, Y. enterocolitica, N. otitidiscaviarum, N. nova, N. asteroides, N. farcinica, N. brasiliensis, N. pneumoniae, N. abscessus, N. arthritidis, N. beijingensis, N. cyriacigeorgica, N. transvalensis, N. veterana, V. parahaemolyticus, S. enterica, E. faecium, E. faecalis, E. cloacae, P. mirabilis, P. vulgaris, P. intermedia, P. melaninogenica, V. parvula, F. magna, L. interrogans, T. pallidum, B. quintana, B. henselae, B. cepacia
Fungi (41 species)		P. jirovecii, C. neoformans, C. gattii, T. asahii, C. albicans, C. tropicalis, C. dubliniensis, C. parapsilosis, C. lusitaniae, C. glabrata, C. krusei, C. auris, A. ﬂavus, A. fumigatus, A. niger, A. terreus, A. nidulans, A. versicolor, H. capsulatum, R. arrhizus, R. microsporus, R. oryzae, R. pusillus, M. circinelloides, M. indicus, M. racemosus, L. ramosa, L. corymbifera, C. bertholletiae, T. marneﬀei, C. immitis, P. variotii, P. lilacinum, L. proliﬁcans, L. valparaisensis, A. alternata, A. infectoria, S. boydii, S. apiospermum, F. solani complex, F. oxysporum complex
Other pathogens (4 species)		M. pneumoniae, C. pneumoniae, C. psittaci, C. trachomatis

AMR Markers List

Pathogen		Antimicrobial Resistance (AMR)
Classfication	Species	Type	Mechanism	Gene
Bacteria	Acinetobacter baumannii Enterococcus faecalis Enterococcus faecium Escherichia coli Haemophilus influenzae Haemophilus parainfluenzae Klebsiella pneumoniae Listeria monocytogenes Pseudomonas aeruginosa Salmonella enterica Staphylococcus aureus Streptococcus pneumoniae ......	Aminoglycosides	Antibiotic Inactivation	AAC(2'), AAC(3), AAC(6'), AAC(6')-Ie-APH(2'')-Ia, ANT(2''), ANT(3''), ANT(4'), APH(2''), APH(3'), APH(3’’), APH(6)
		Aminoglycosides	Antibiotic Target Alteration	armA, rmtA, rmtB, rmtD
		Penicillins Cephalosporins Carbapenems	Antibiotic Inactivation	ACC, ACT, CMY, DHA, Abau_ampC_BLA, Ecol_ampC_BLA, TEM, SHV, CTX-M, PER, GES, SME, VEB, IMI, NmcA, NmcR, KPC, OXA, GIM, IMP, SFH, SPM, VIM, NDM, IND
			Antibiotic Target Alteration	PBP1a, PBP2, PBP2x, PBP3
			Antibiotic Target Replacement	mecA, mecC
			Reduced Permeability to Antibiotic	ompF, oprD
		Peptides	Antibiotic Target Alteration	MCR, basR, PhoP, PhoQ, LpxA, LpxC, cls, mprF, pgsA, walK, menA, vanA, vanB, vanC, vanD, vanG
		Fluoroquinolones	Antibiotic Target Protection	QnrA1, QnrB1, QnrB4, QnrS1
			Antibiotic Target Alteration	gyrA, gyrB, parC, parE
			Antibiotic Efflux Pumps	PatA, PatB, PmrA
		Aminocoumarins	Antibiotic Target Alteration	gyrB
		Macrolides	Antibiotic Inactivation	EreA, EreB, mphB
			Antibiotic Target Alteration	ErmA, ErmB, ErmF
			Antibiotic Target Protection	msrA, mel
		Lincosamides Streptogramins	Antibiotic Target Alteration	ErmA, ErmB, ErmF
		Chloramphenicols	Antibiotic Inactivation	catB3, catB8, Paer_catB6
		Chloramphenicols	Antibiotic Efflux Pumps	cmlA
		Tetracyclines	Antibiotic Target Protection	tet(M), tet(Q), tet(T), tet(W)
		Tetracyclines	Antibiotic Efflux Pumps	tet(A), tet(D)
		Sulfonamides	Antibiotic Target Alteration	folP
		Nitrofurans	Antibiotic Inactivation	nfsA
		Rifamycins	Antibiotic Target Alteration	rpoB, rpoC
		MDR	Antibiotic Efflux Pumps	mtrC, mtrD, mtrE, AcrF, TolC, emrA, adeB, adeF, oqxA, oqxB, qacA, mdfA, acrR, ramR, soxS, soxR
Fungi	Candida albicans Candida parapsilosis Candida glabrata Candida auris Cryptococcus neoformans Cryptococcus gattii Aspergillus fumigatus	Azoles	Antibiotic Target Alteration	ERG11, CYP51A, CYP51C
			Antibiotic Target Overexpression	Upc2, hapE, Hmg1
			Efflux Pump Overexpression	TAC1, MRR1, PDR1
			Antibiotic Inactivation	ERG3
		Echinocandins	Antibiotic Target Alteration	FKS1, FKS2
		Polyenes	Antibiotic Target Absence	ERG11
		Pyrimidines	Reduced Permeability to Antibiotic	FCY2, UXS1

Application

Upper respiratory tract infections (URTIs): common cold, influenza, rhinitis, pharyngitis, tonsillitis, laryngitis, etc.
Lower respiratory tract infections (LRTIs): tracheitis, bronchitis, bronchiectasis, bronchiolitis, pneumonia, lung abscess, etc
Mycobacterial infections: pulmonary tuberculosis and nontuberculous mycobacteria (NTM) lung disease, etc.
Chronic respiratory infections: chronic obstructive pulmonary disease (COPD), asthma, etc.

Applicable for the detection of respiratory specimens, including oropharyngeal/nasopharyngeal swabs, sputum, bronchoalveolar lavage fluid/bronchial washing fluid, pleural fluid/ascites, and lung biopsy tissue.

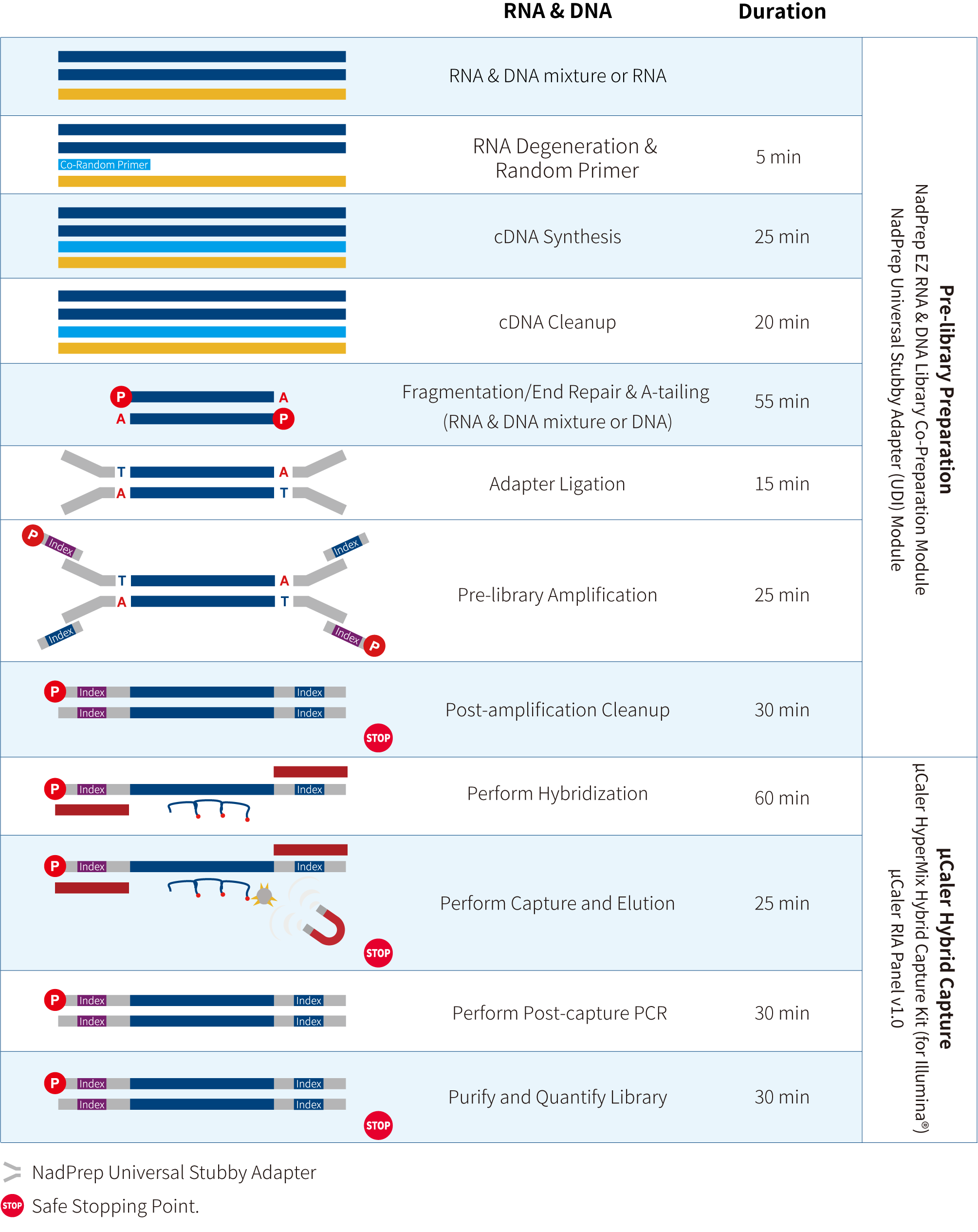

Workflow

Feature

Sample-in, result-out; TAT reduced to 12 hr.
> 99% common clinical pathogens + ~200 AMR markers.
Specific detection of low-load pathogens with stable, reliable results.
End-to-end QC to reduce false positives.
AMR markers identification with source-microbes attribution.
Fine-resolution genotyping and variant analysis for key RNA viruses.

Performance

Stable Detection of Multiple Pathogens in Reference Standard

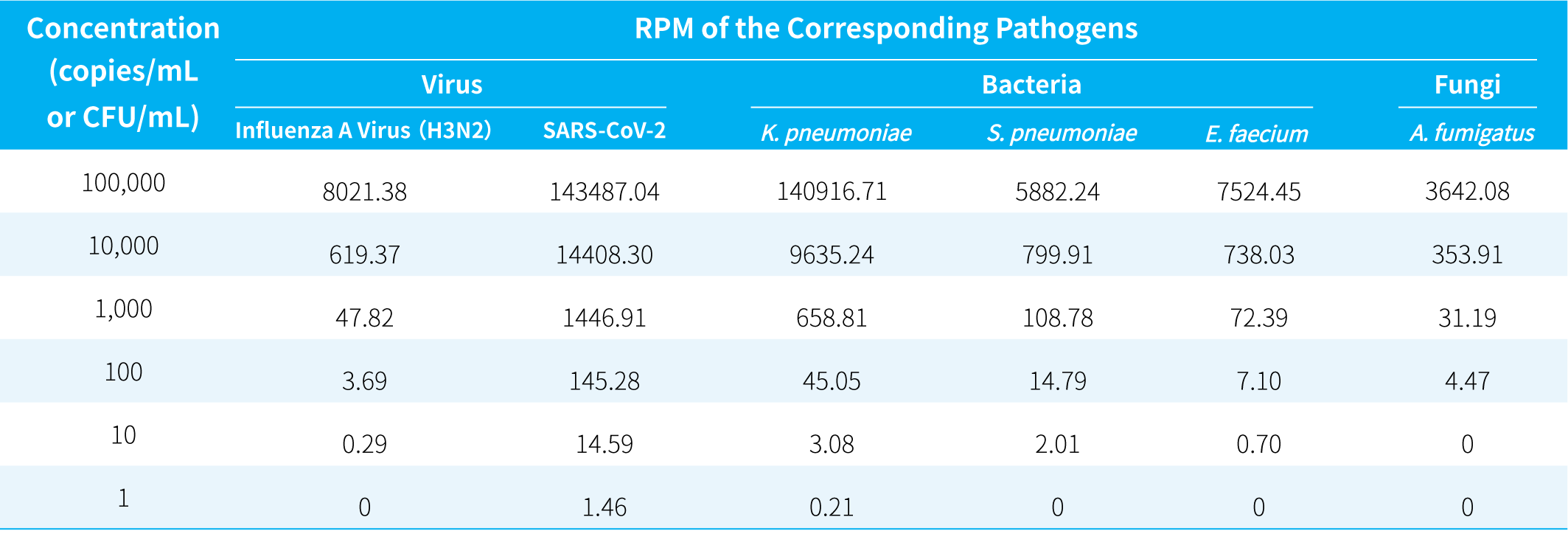

Table 1. Limit of detection (LoD) of the μCaler RIA Solution for multiple pathogens in reference standard.

A total of 0.4 mL of reference standard at diﬀerent concentration gradients was used for extraction of mixed RNA & DNA. Pre-libraries were prepared using the NadPrep EZ RNA & DNA Library Co-Preparation Module coupled with the NadPrep Universal Stubby Adapter (UDI) Module. Hybrid capture was performed using the μCaler HyperMix Hybrid Capture Kit (for Illumina®) and the μCaler RIA Panel v1.0. Sequencing was performed on MiSeq with PE150, with raw data of 3 M read pairs per sample.

Note: RPM stands for reads per million mapped reads.

Signiﬁcantly Improved Detection Rate for Clinically Important Pathogens

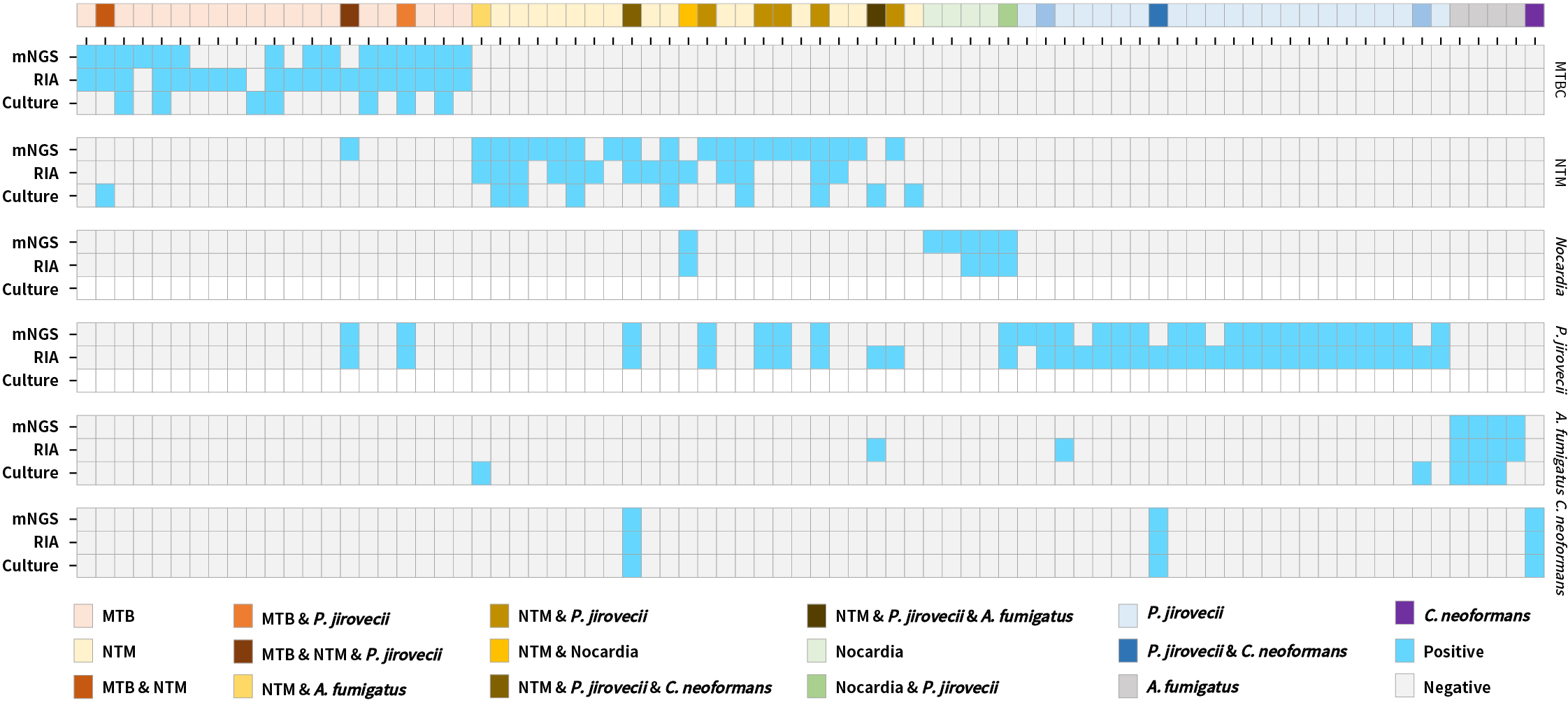

Figure 1. Heatmap comparison of detection concordance among the μCaler RIA Solution, mNGS, and culture for key clinical pathogens.

Note: Light blue and light gray blocks indicate positive and negative results, respectively; white block indicates the method is not applicable, and no valid result could be obtained. Samples were collected from 78 clinical patients, including multiple specimen types such as sputum and BALF. Clinically important pathogens included in the analysis were: MTBC (M. tuberculosis complex), NTM (nontuberculous mycobacteria), Nocardia spp., P. jirovecii, A. fumigatus, and C. neoformans.

Precise Identiﬁcation of Antimicrobial Resistance Genes (ARGs) and Associated Pathogens

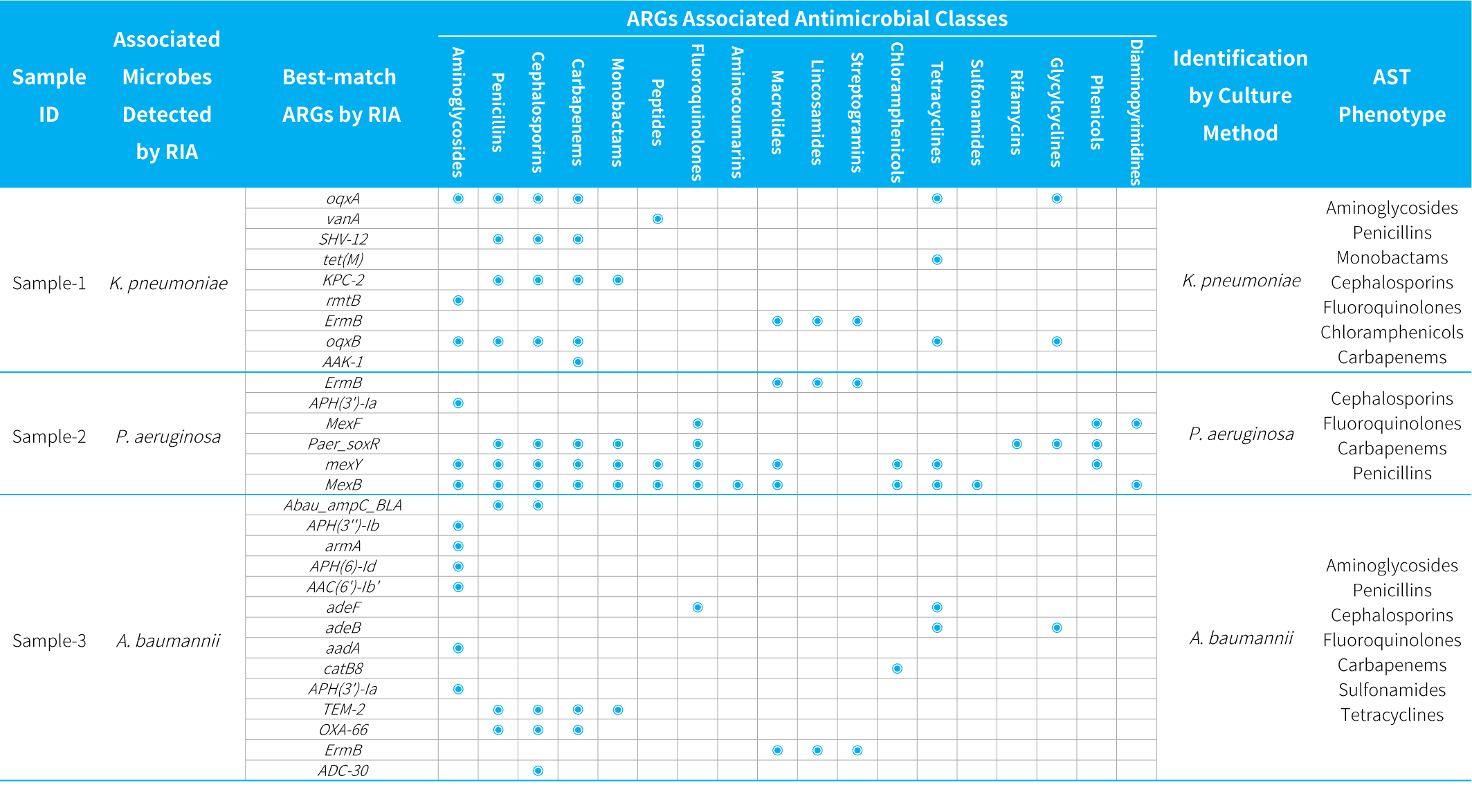

Table 2. Concordance analysis between the μCaler RIA Solution and conventional methods for pathogens detection and distribution of ARGs across diverse clinical specimens.

For research use only. Not for use in diagnostic procedures.
